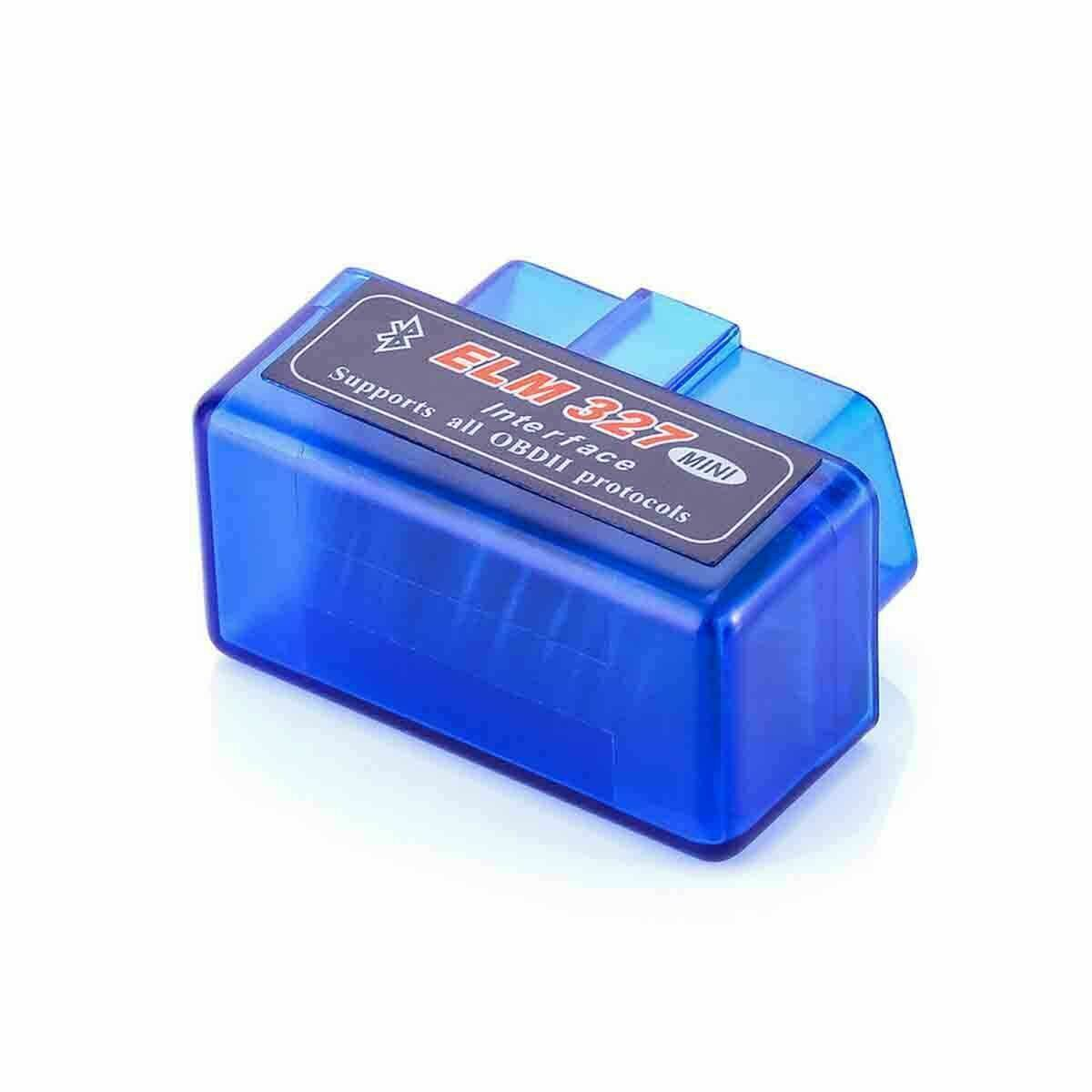

ELM327 V2.1, BT5.1 OBD2 Scanner 12V

The newly developed, high-quality wireless ELM327 V2.1 OBDII/OBD2 scan tool is a small Bluetooth interface with a 16 pin socket. It supports most OBD2 protocols*, is able to read diagnostic trouble codes (generic and manufacturer specific) as well as clear trouble codes and turn the Malfunction Indicator Light (MIL – “Check Engine” light) off. It also allows you to read and monitor live vehicle sensor data (readable parameters are dependent on the vehicle).

Works with a wide range of software many are free or very low cost from various App stores such as Torque and OBD Auto Doctor.

Supported Operating Systems: IOS, Android, Windows

Supported Protocols:

• ISO 9141-3 (5 baud init, 10.4 Kbaud)

• ISO14230-4 KWP (5 baud init, 10.4 Kbaud)

• ISO15765-4 CAN (11bit ID, 500 Kbaud)

• ISO15765-4 CAN (29bit ID, 500 Kbaud)

• ISO15765-4 CAN (11bit ID, 250 Kbaud)

• ISO15765-4 CAN (29bit ID, 250 Kbaud)

• KWP2000 5 10.4Kbaud

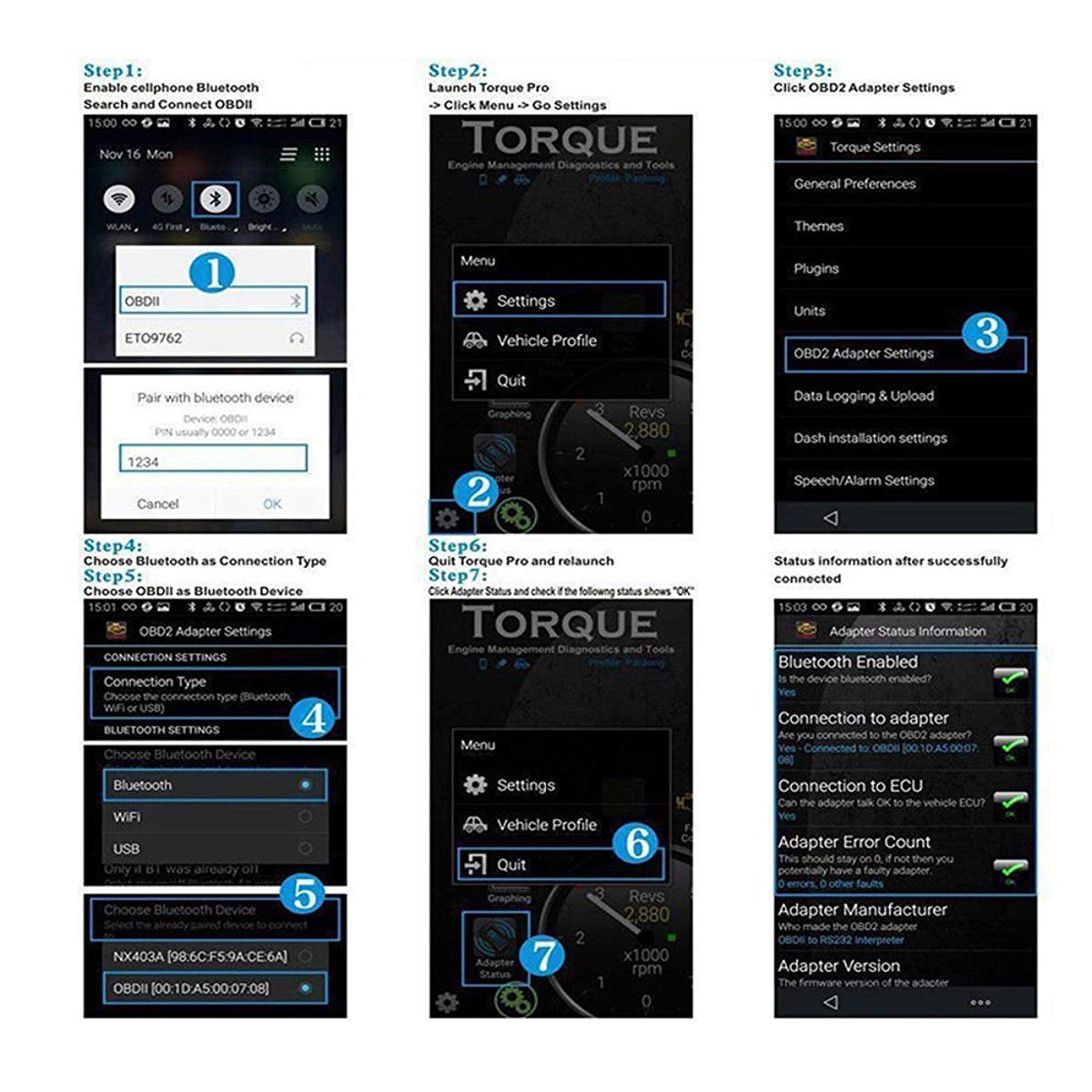

How to connect:

For IOS Users:

1. Enable Bluetooth on the IOS device,

2. Head to the App's connection setting and select Bluetooth LE 4.0 (Pair in APP ONLY)

3. Select the device named "OBDBLE" or similar

For Android Users:

1. Enable Bluetooth for the Android device

2. .In Bluetooth settings "OBDII" will appear

3. Pair it then go into your app

4. Password: (1234 or 0000)

THE ELM327 UNIT ONLY CLEARS ENGINE AND AUTOMATIC TRANSMISSION DTC’S ON SUPPORTED VEHICLES AND APPS.

No apps are included, You must download suitable app/s available for the vehicle. We do not offer support on the software. We just supply the connector for the supported software/vehicles.

Not suitable for 24V vehicles.
