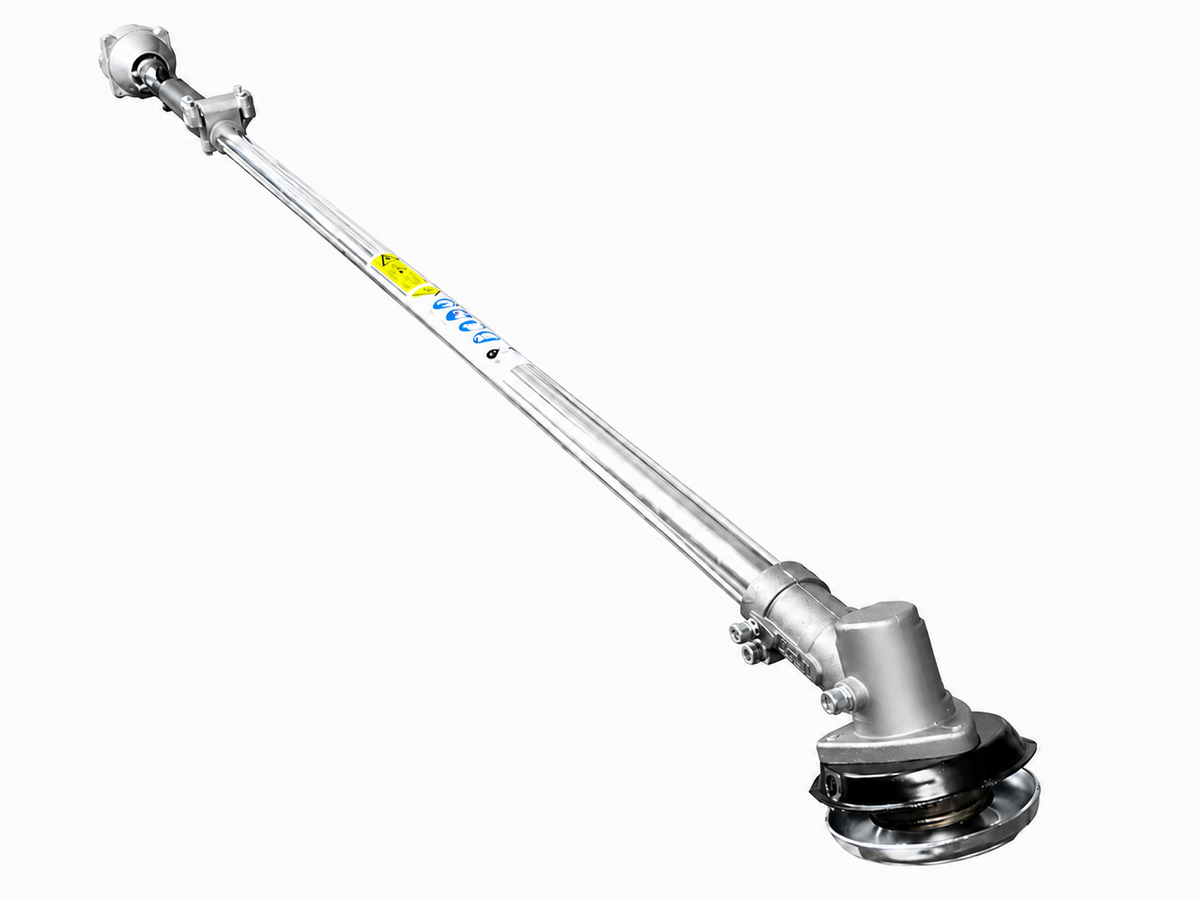

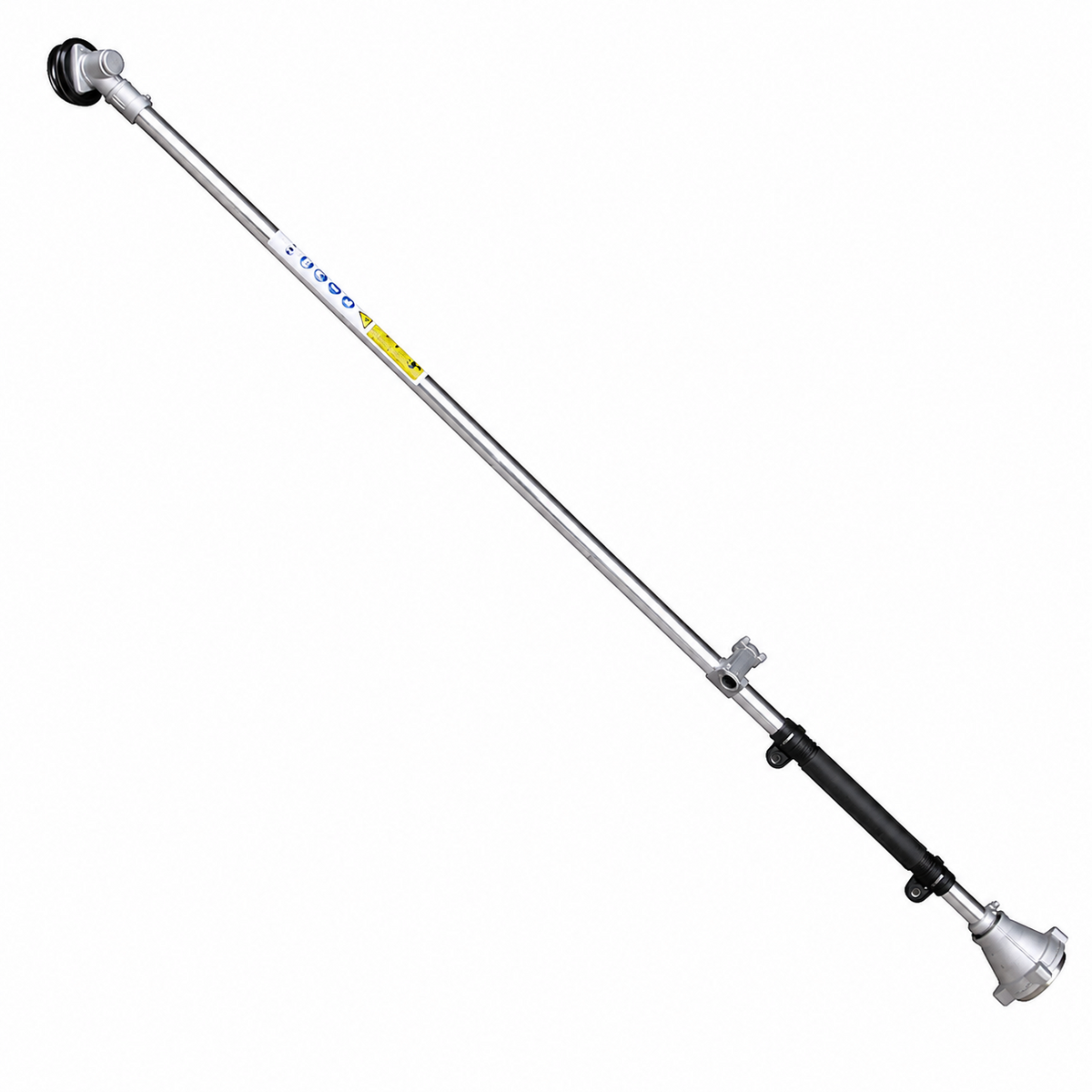

Line Trimmer Shaft Assembly 160cm

Complete straight shaft drive assembly suitable for repairing or replacing the shaft assembly on compatible petrol line trimmers and brush cutters.

Supplied as a complete assembly as pictured, including the straight drive shaft tube, gear head and engine side clutch housing.

Suitable for various brands and models, provided the clutch housing mounting hole pattern and dimensions are the same as your existing unit.

Specifications:

• Overall Length: 160cm
• Shaft/Tube Diameter: 28mm
• Handle Bracket Suits 20mm Tubing
• Engine Mount: 4-bolt pattern

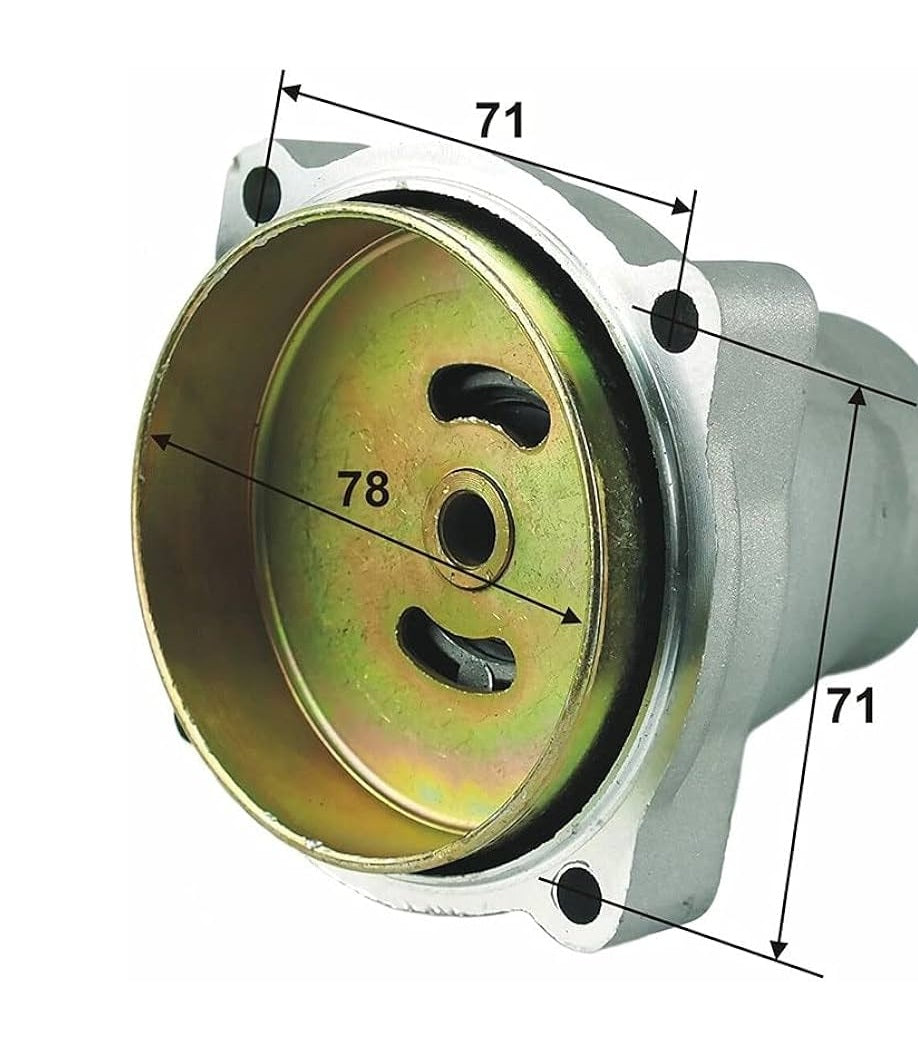

• Bolt Hole Centres: 71mm centre to centre

• Diagonal Bolt Centres: 99mm

• Clutch Drum Internal Diameter: 78mm
