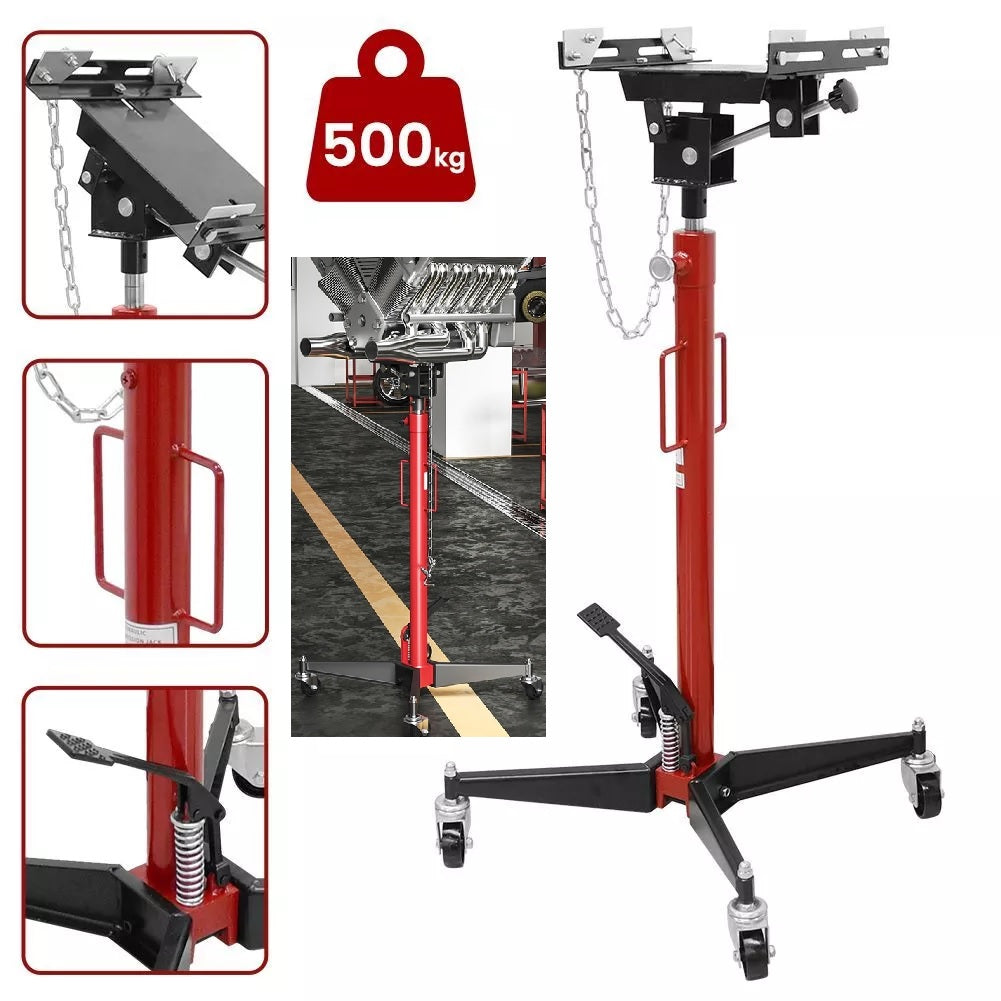

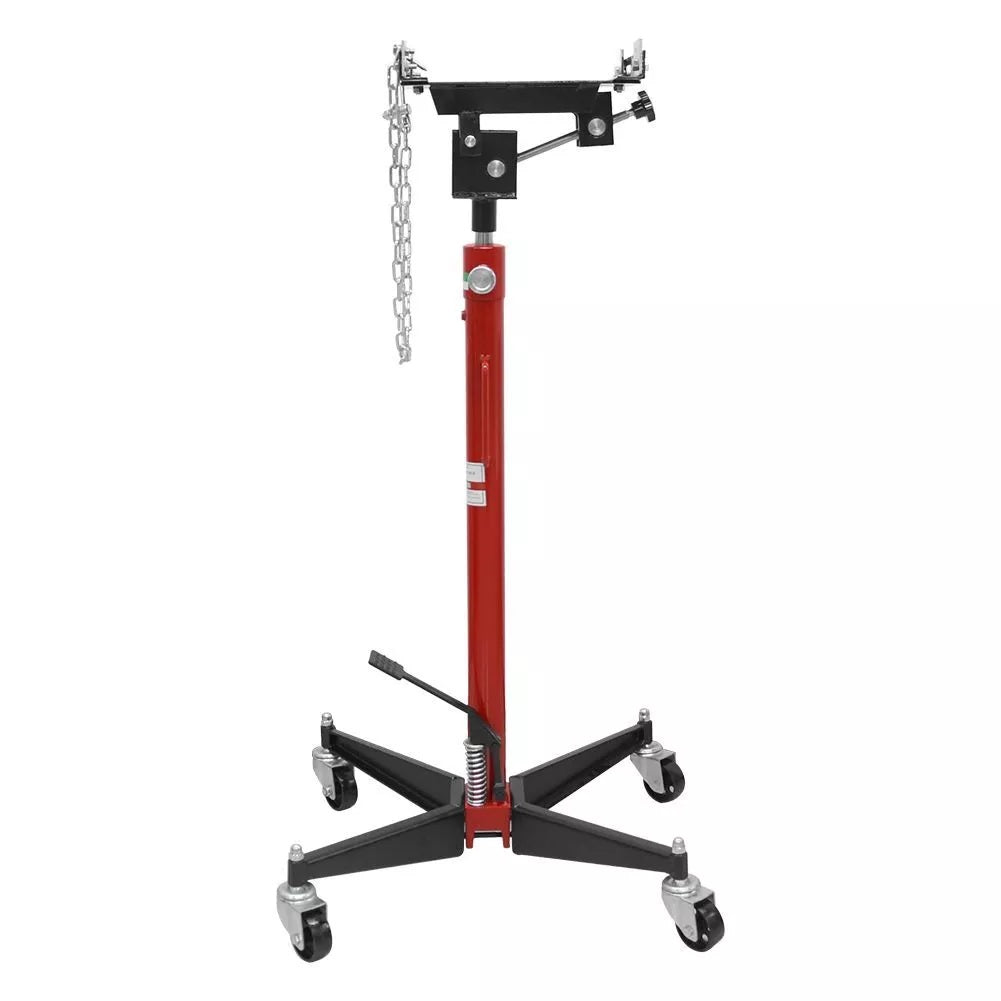

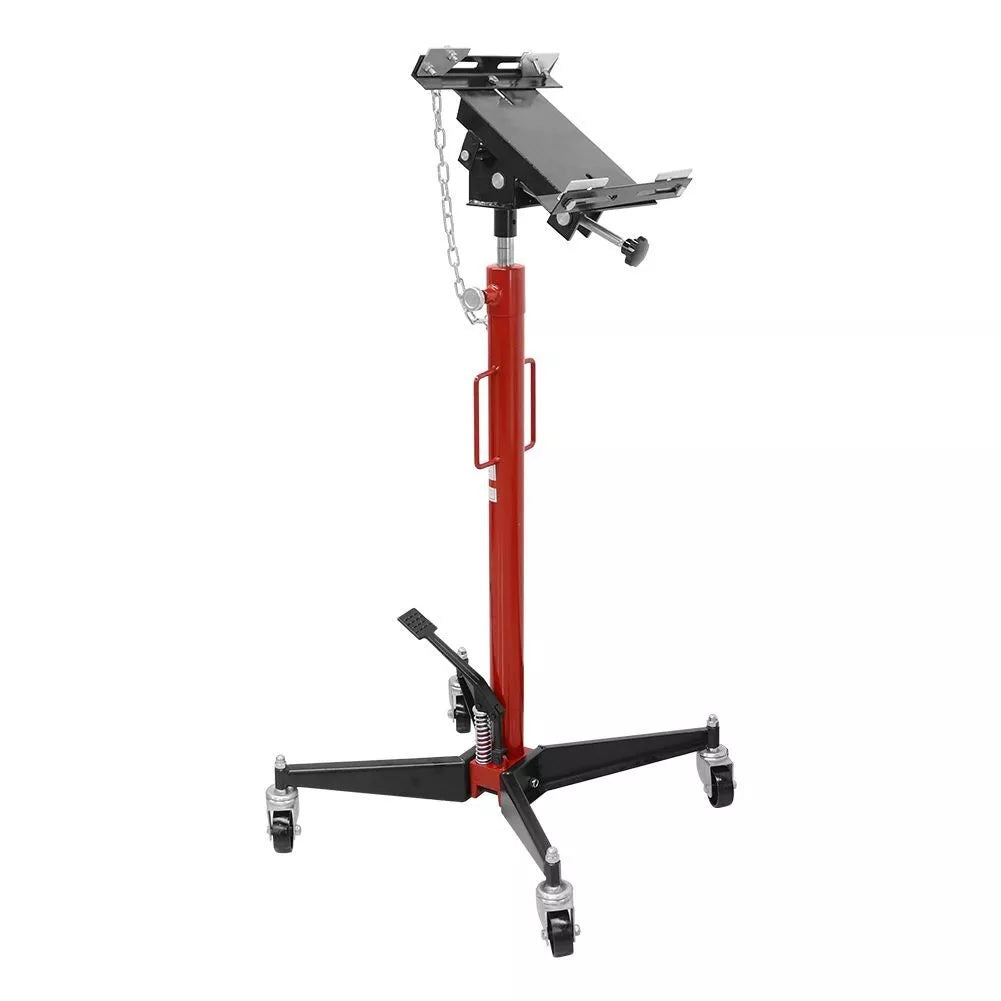

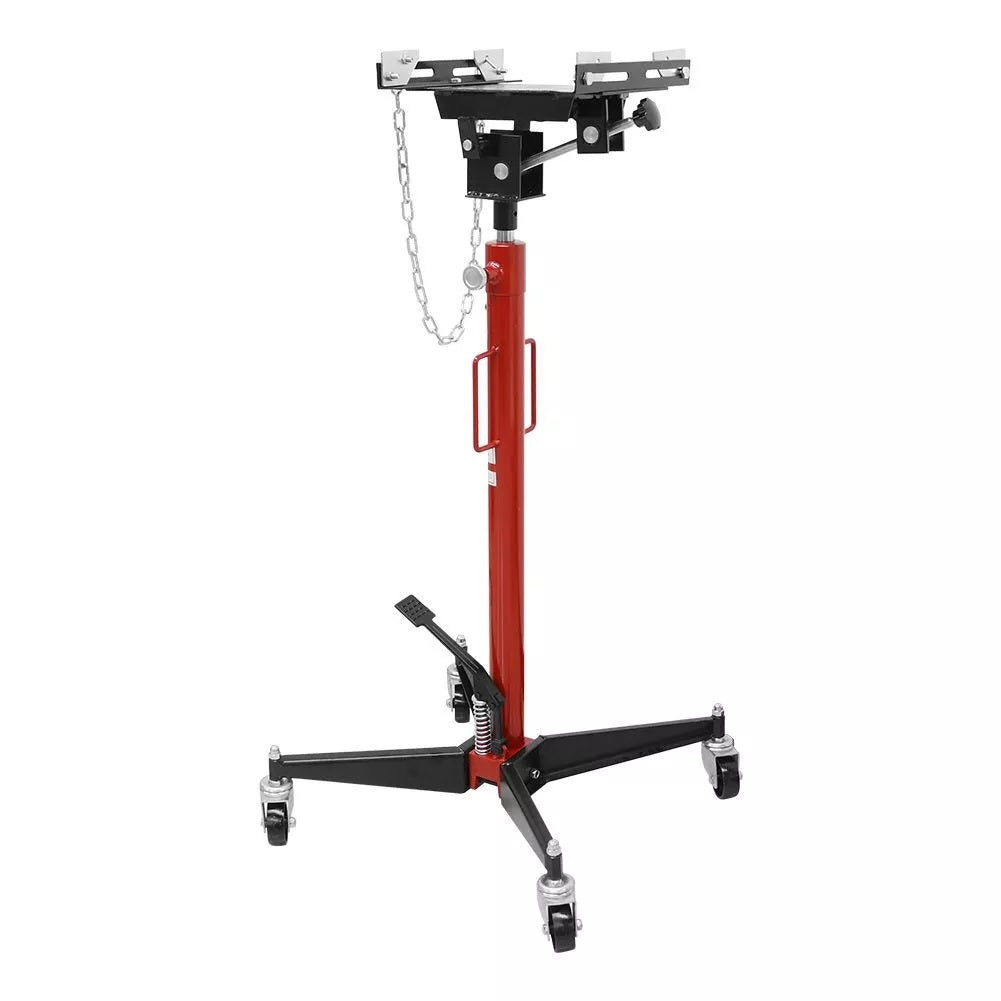

Pivoting Hydraulic Transmission Jack 500kg

Pivoting Hydraulic Transmission Jack 500kg

Regular price $219.99 NZD
Regular price Sale price $219.99 NZD
Sale Sold out
Shipping calculated at checkout.
Quantity

This Heavy Duty high lift transmission jack helps you safely align, position, remove, and install transmissions. It is also suitable for various lifting operations, such as mounting springs, fuel tanks, exhaust pipes, suspensions, and more. Equipped with a universal pivot saddle and a safety chain, it allows for 60 degrees of forward tilt and 10 degrees of backward tilt.

The convenient foot-operated pump enables you to keep your hands free as you lift while the spring-loaded safety release valve (dead mans handle) automatically halts lowering when let go.

The two-way hydraulic unit ensures that the saddle lowers at a controlled speed at all times.

Minor assembly required.

Specifications:

  • Maximum Working Capacity: 500kg
  • Low Height: 1200mm (from Base of Saddle)
  • Maximum Height: 2000mm (from Base of Saddle)
  • Saddle Size: 325mm x 335mm (Widest Point)
