Radiator Cooling System Tester and Refill Kit

This set is designed to refill radiator coolant by creating a vacuum in the cooling system, allowing coolant to be replaced without introducing air pockets.

Supplied with a cone shaped adaptor to suit a variety of radiator filler necks. There is no need to undergo checking the air bleeding after refilling the new coolant.

Please note: An existing air compressor/compressed air is required.

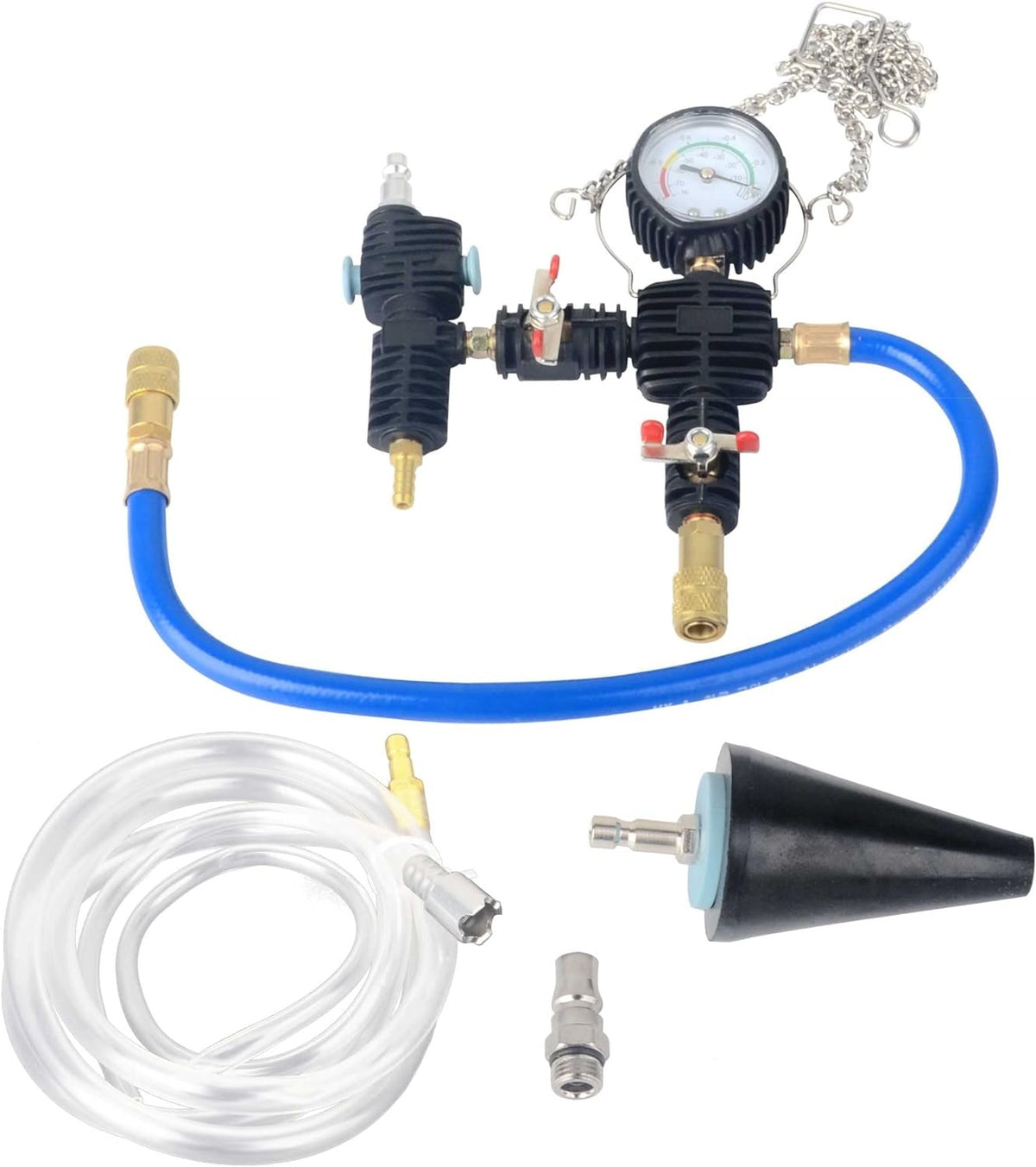

Kit Includes:

• 1x Vacuum Purge & Refill Tool with Gauge

• 1x Cone Adapter

• 2x Hose

• 2x Air Fittings

• 1x Instruction Manual

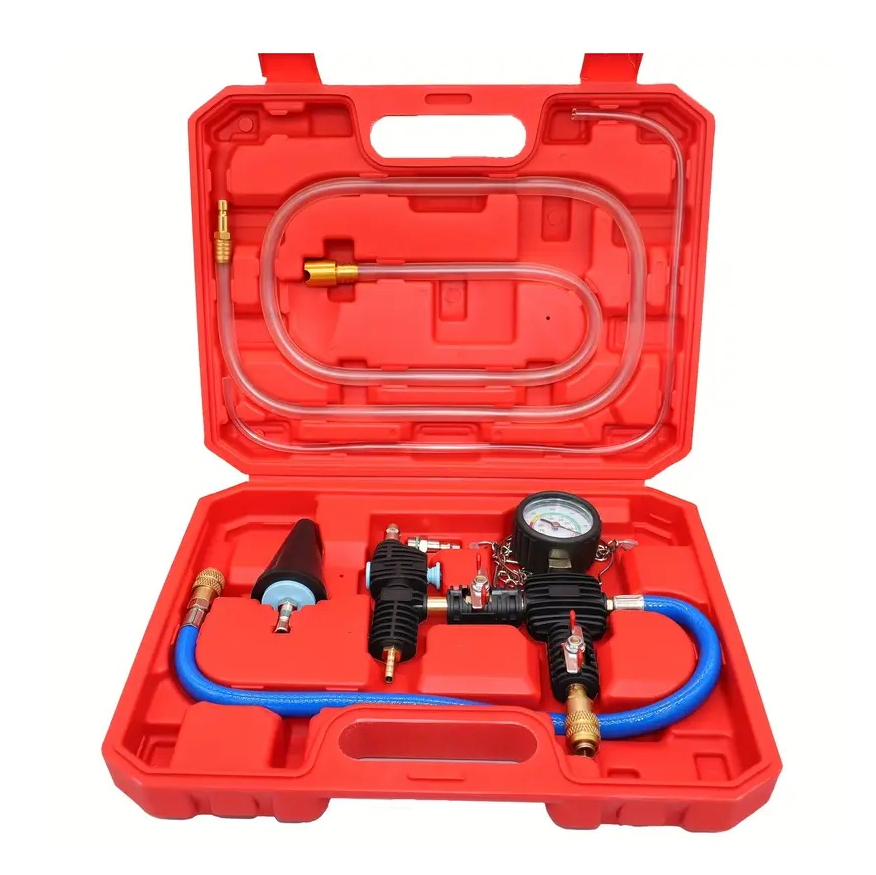

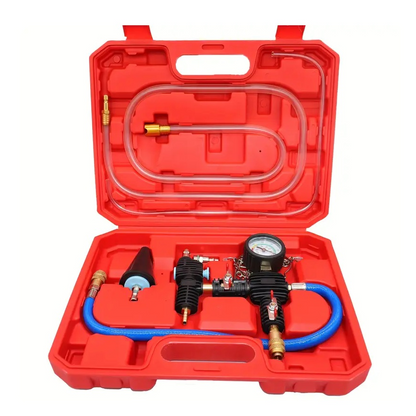

• 1x Storage case


Instructions:

1. Drain coolant from vehicle and flush if necessary.

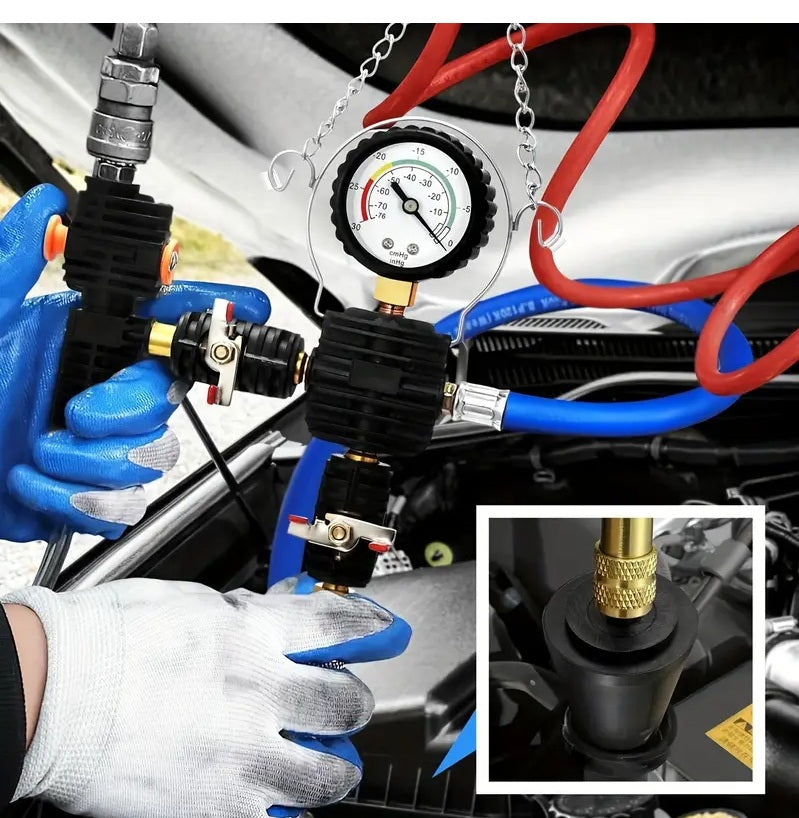

2. Mount gauge assembly under bonnet using chain and hook.
3. Select correct cooling system adaptor and connect to cooling system ensuring a complete seal.
4. Ensure all taps and switches are in the off position. Connect the thin clear PVC drain tube to the gauge assembly directing overflow to bucket.
5. Connect airline to air inlet male airline brass fitting. Ensure tap is open then push on/off switch to the open position.
6. Once required vacuum is achieved turn tap to the off position and close the on/off switch.
7. Connect the coolant large clear hose to the assembly quick release fitting and insert into the replacement new coolant.
8. Turn tap to the on position to allow replacement coolant to be drawn into the cooling system. When gauge reading reaches zero disconnect assembly from the cooling system. Check coolant level and top up if required.
